Injection hose with braid – 5 mm

HO-HOSE/B 5

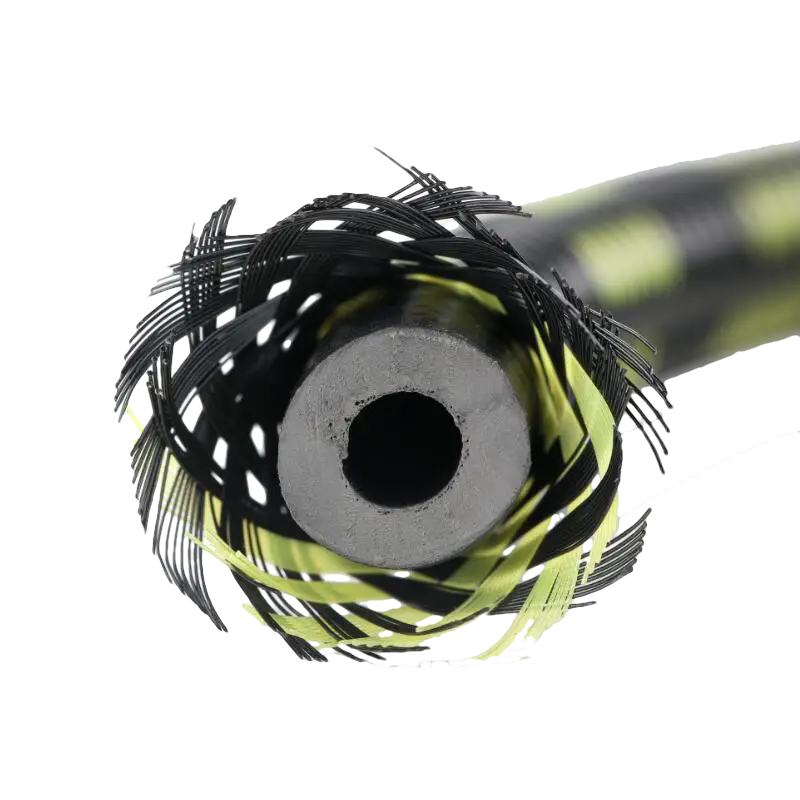

Textile-braided injection hose: 5 mm internal diameter, 11 mm external diameter and 2 mm outlets. Available by the metre or on a 100 m reel.

Log in to see prices

This product is currently out of stock and unavailable.

Description

The injection hose of the system should be built into the working gaps of the university structures. The hose should be mounted to a smooth, clean surface.

Connecting the 5 mm hose system

Connecting the 5 mm hose system
1. Braided injection hose · 2. Plain injection hose · 3. Feed hose 6 × 2.5 mm · 4. Clamp 11–13 mm · 5. HO-CONNECT connector · 6. HO-END filling packer. Maximum active hose length: 10 m per section, according to the catalogue.

Additional information

Packaging

1 m, 100 m
