Perform injections on a selected part of the lance
Seal the injection at any depth and fix the lances
Each element of the lance has a cutter for a 12 / 15 wrench
Proven tools for injecting

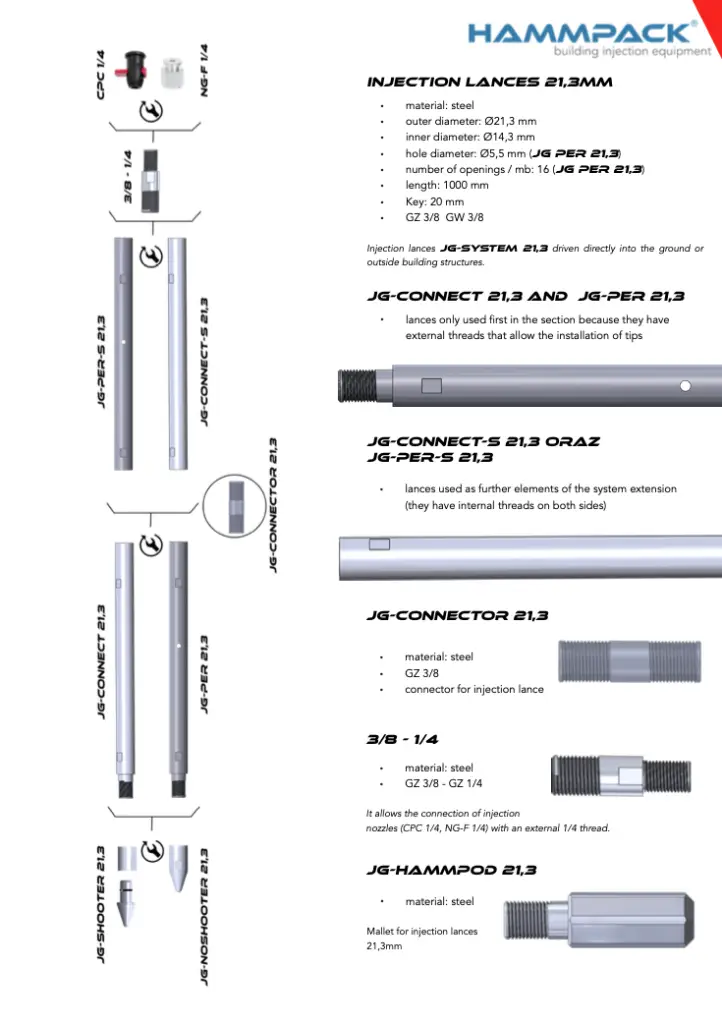

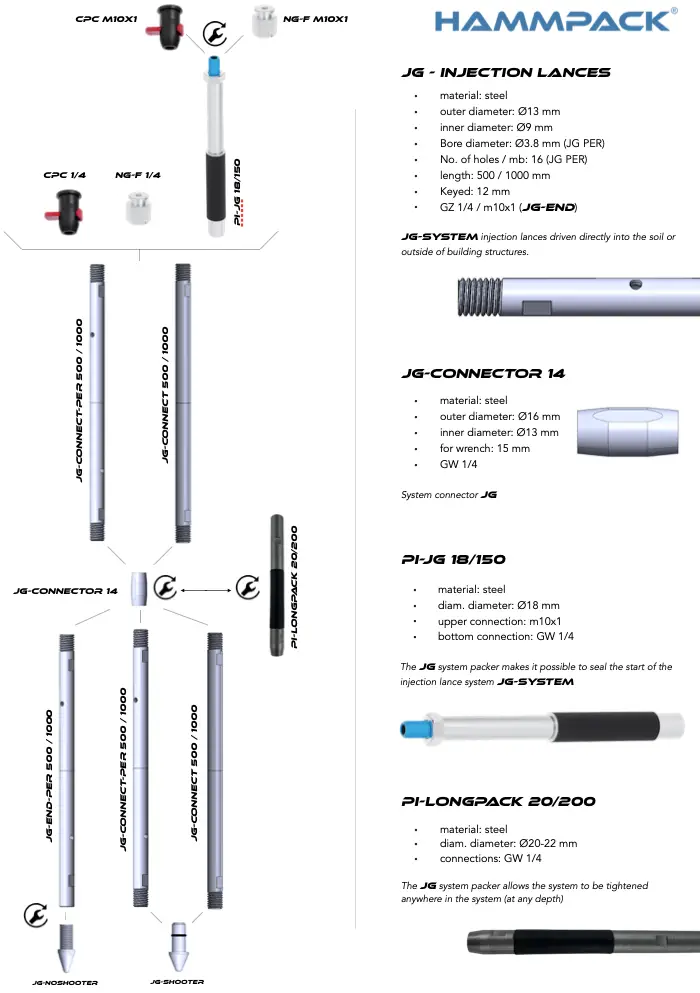

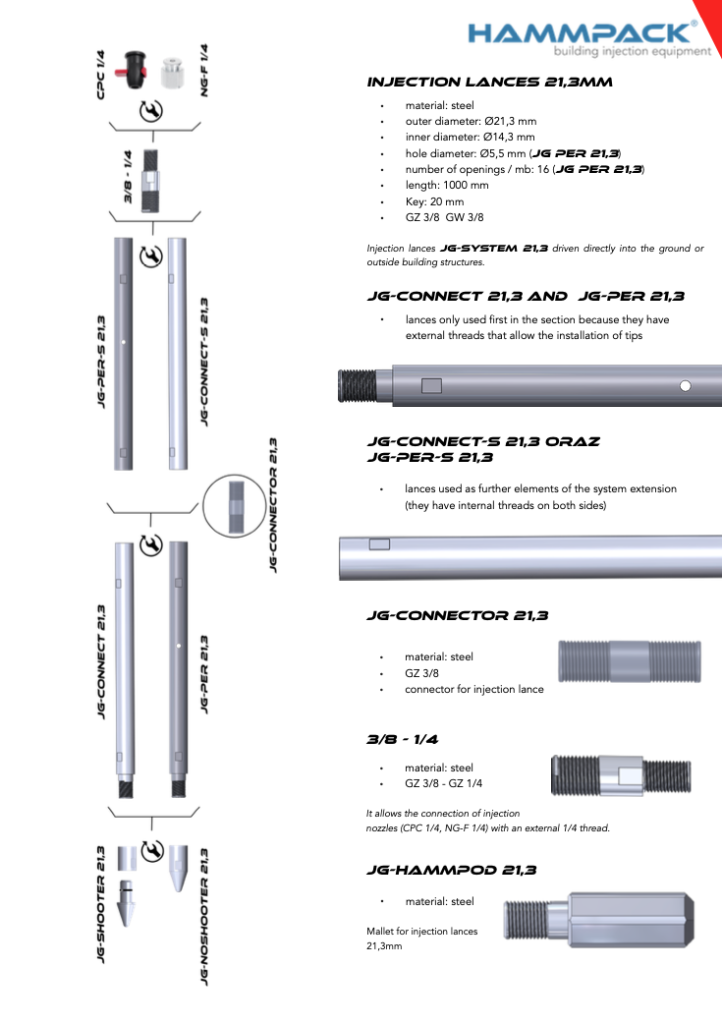

Hammpack JG-SYSTEM injection lances, with 500mm and 1000mm solid and perforated section lengths. Balanced injection surface structure for both cement suspensions, geopolymers, acrylic gels and polyurethane resins.
Full-spectrum injection lances. Convenient to use with wrench entries (no more twisting injection lances with awkward pipe wrenches).
Arrowhead – allows injection directly at the ground (for solid injection lances) and/or perforated injection lances (full system compatibility). Fits JG-CONNECT-PER, JG-CONNECT injection lances.
Fixed (screw-in) blade – outlet holes allow injection along the entire length of the perforated lance at the desired section (system compatibility with full injection lance). Fits JG-END-PER injection lance.
The maximum depth of the work carried out depends on the ground conditions, in case of favorable conditions it can be up to 15 meters.
1. installation of the spearhead on the injection lance:
(a) press-in tip JG-SHOOTER
b) screw-in blade JG-NOSHOOTER
2. screw in JG-HAMMPLUG
3. hammering the lance with an impact hammer
4. unscrewing the JG-HAMMPLUG
5 Filming JG-CONNECTOR 14
Installation of another part of the lance.
6 In order to reach the final depth, it is necessary to
repeat steps 2-5
